SeedarRange

McArthur’s range of Seedarmobile grain driers offers a comprehensive selection of models, options and features. Whether you are looking for an electric automatic mobile grain drier or something tractor driven and readily portable, there is a Seedarfor the job.

Compact & Mobile

Practical & Hardworking

Robust & Versatile

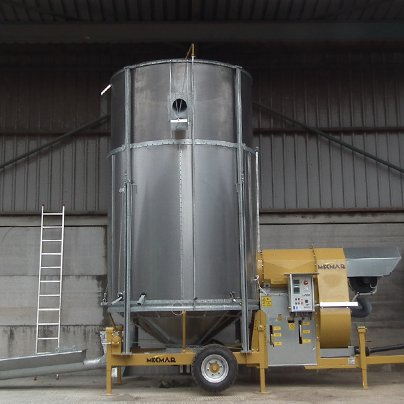

Compact & Mobile

7 - 15 tonnes

This range of Seedargrain driers is designed to be compact and highly mobile. Small silo diameters and low transport heights make them suitable for regular relocation.

Commonly the drier capacity will be matched to grain trailer size or be used automatically with a large hopper. The FSN 15 T matches the capacity of modern grain trailers making loading and emptying the drier simpler. Also drying two batches gives enough grain for a full lorry load.

	SUPER 7	SUPER 10	STR 10 T	STR 13 T	FSN 12 F	FSN 15 T
BATCH CAPACITY	7 tonnes10 m³	10 tonnes13 m³	10 tonnes14 m³	13 tonnes17 m³	12 tonnes16 m³	15 tonnes20 m³
LOADING TIME	11 mins	15 mins	10 mins	13 mins	12 mins	15 mins
EMPTY TIME	9 mins	13 mins	8 mins	10 mins	9 mins	12 mins
POWER REQUIRED FOR TRACTOR DRIVE	40 hp	40 hp	50 hp	50 hp	50 hp	50 hp
POWER REQUIRED FORELECTRIC DRIVE	60 A	60 A	60 A	60 A	60 A	60 A
HEIGHT IN OPERATION(including aspirator)	3.86 m(5.69 m)	5.00 m(6.20 m)	4.78 m(5.70 m)	5.31 m(6.67 m)	4.84 m(5.87 m)	5.66 m(6.69 m)
HEIGHT IN TRANSPORT	4.36 m	4.32 m	4.13 m	4.53 m	4.84 m	4.57 m
WIDTH	2.28 m	2.27 m	2.44 m	2.44 m	2.65 m	2.65 m

Technical Data Download

Options

DRIVE

Tractor Drive
Electric Drive
Dual Drive

FUEL

Diesel
Kerosene
LPG

AUTOMATION

Tractor Driven Automatic Empty
Electric Driven Automatic Empty
Standard Automatic
Advanced Automatic

LOADING

Standard Hopper
Stubby Hopper
Shortened Hopper
Pit Auger

EMPTYING

Through Screen Gravity To Both Sides
Over Screen Gravity To Either Side
Over Screen Gravity To Both Sides
Electric Cross Auger

CROP CLEANING

Gravity Cleaner
Aspirator Cleaner

ENVIRONMENTAL CONTROL

Solid Screens
Centrifugal Fan Engagement
Cyclone

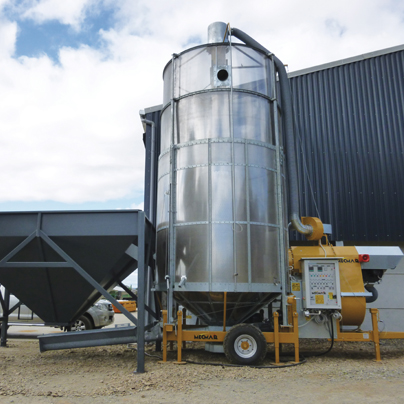

Practical & Hardworking

14 - 28 tonnes

The most popular range of Seedargrain driers offer excellent daily productivity whilst still being readily mobile. A broad range of models with different dimensions and power requirements mean there are options to suit most existing power supplies and buildings.

The D 24 T is the most popular model in the Seedarrange while the SSI 28 T is used by those either filling from or emptying to a lorry. The D 18 T has a low power supply requirement making it suitable for most farms.

	D 14 F	D 18 T	D 20 T	D 24 T	SSI 25 T	SSI 28 T
BATCH CAPACITY	14 tonnes18 m³	18 tonnes24 m³	20 tonnes27 m³	24 tonnes32 m³	25 tonnes33 m³	28 tonnes38 m³
LOADING TIME	14 mins	18 mins	20 mins	24 mins	25 mins	28 mins
EMPTY TIME	11 mins	14 mins	15 mins	18 mins	19 mins	21 mins
POWER REQUIREDFOR TRACTOR DRIVE	70 hp	70 hp	70 hp	90 hp	110 hp	110 hp
POWER REQUIREDFOR ELECTRIC DRIVE	60 A	60 A	80 A	100 A	100 A	100 A
HEIGHT IN OPERATION(including aspirator)	4.71 m(5.71 m)	5.80 m(6.80 m)	6.33 m(7.29 m)	7.27 m(8.27 m)	7.04 m(7.99 m)	7.42 m(8.39 m)
HEIGHT IN TRANSPORT	4.56 m	4.60 m	5.10 m	5.10 m	4.92 m	4.92 m
WIDTH	3.00 m	3.00 m	3.00 m	3.00 m	3.15 m	3.15 m

Technical Data Download
